Custom railing sytems

Click on Photos to Enlarge

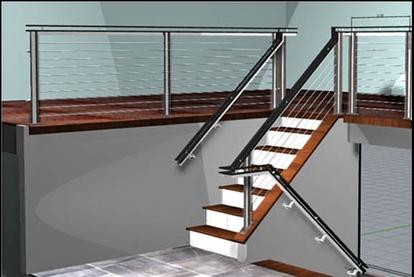

Client environment is rendered in CAD

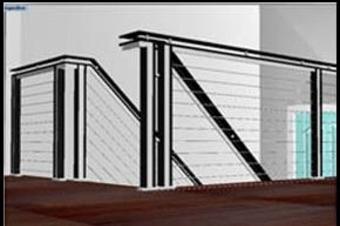

Designs are laid out in scale to study
proportion and scale
Initial costing studies are done
Design & Construction details are
worked out & reviewed with client
Revisions are made and designs are
locked down for final costing and client
approval

.

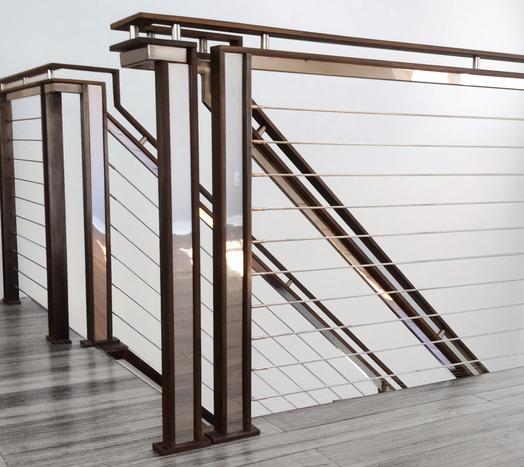

Actual Photo of top of Staircase

VS

understanding how to build: using steel structural supports

Actual Photo of top of Staircase

VS

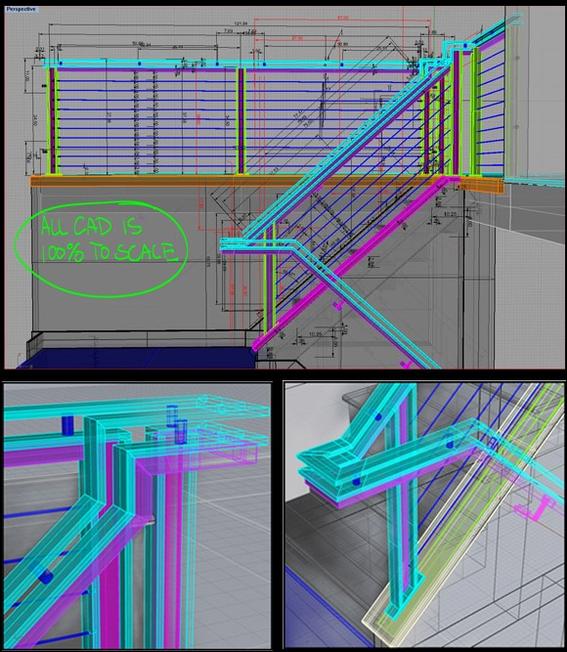

Materials & Design Details are worked out
Construction Details are fined tuned
Final costing is completed

.

Actual Photo of top of Staircase

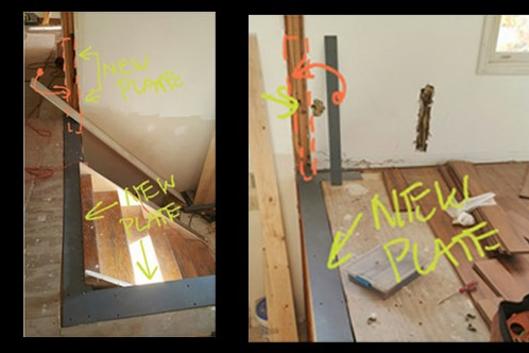

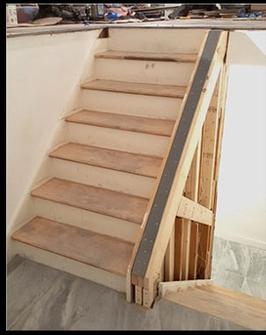

Advanced Construction Planning : We placed steel support plates into the sub-floor and into the top of the stair wall to support the weight and torsional force deflection of the railings. We also embedded steel support plates into the walls that recieved the end of the railing runs. The use of these structural supports keep the railings from wobbling and becoming week over the course of time. They also fortify the overall structural integrity of the railing system.

Actual Photo of top of Staircase
